Keyway Milling for Pump Manufacturing
Pumps are one of the most keyway-intensive product categories in industrial manufacturing. Impeller hubs, pump sleeves, shaft couplings, and wear rings all depend on precise internal keyways to lock rotating components to shafts and transmit torque reliably under continuous load. When those keyways are in blind bores, threaded bores, or geometries that standard broaching can’t reach — that’s where NMT’s keyseat millers come in.
We’ve been manufacturing custom keyseat millers for pump applications for over 100 years. The pump industry is one of our core verticals, and pump sleeve and impeller keyway applications are among the most technically interesting problems our engineers solve.
Where Keyways Appear in Pump Assemblies
Pump manufacturing involves internal keyways at multiple points in the assembly. Each presents its own machining challenge:
Impeller hubs — the central hub bore of a centrifugal impeller must accept a precise keyway to lock the impeller to the pump shaft. Impeller hubs are often blind bores — the keyway terminates inside the hub without breaking through — and the thin-walled geometry of many impeller designs makes drilling a relief hole structurally problematic.
Pump sleeves — shaft sleeves protect the pump shaft from wear and corrosion and are themselves keyed to the shaft to prevent rotation. Bronze and stainless pump sleeves are a particularly common NMT application. The bore geometry of pump sleeves — often threaded at one end, stepped, or featuring an internal shoulder — creates keyway applications that standard tooling simply can’t access.
Shaft couplings and adapters — the coupling connecting a pump to its drive motor is a keyed connection at both ends. Internal keyways in coupling hubs must be accurately dimensioned to avoid fretting and wear under the continuous cyclic loading of pump operation.
Wear rings and case rings — in some pump designs, wear rings are keyed to prevent rotation within the pump casing. These are typically short, small-diameter bores requiring tight tolerances.
Vertical pump line shafts — deep-well and vertical turbine pumps use long line shaft assemblies where internal keyways must be consistently located across multiple shaft sections.
A Real Pump Sleeve Application
One of the clearest examples of what NMT does that standard tooling can’t is a bronze pump sleeve application from our capabilities history.
The customer had a keyway that needed to be milled into a threaded bore — located above a smaller through bore — without a relief hole and without breaking into the bore below. Standard broaching tools have no way to handle this geometry. EDM would have worked but was cost-prohibitive for the volume required.
NMT’s solution was a custom keyseat miller with a long pilot designed to pass through the threaded bore and bear into the lower smaller bore as a guide. The cutter milled the keyway in the threads without disturbing the bore below, to finished dimensions of 0.625″ width and 0.310″ depth, held to ±0.0002″. That’s the kind of problem NMT was built to solve.
Why Pump Applications Push Standard Tooling to Its Limits
Several characteristics of pump components create keyway applications that broaching, EDM, and standard milling struggle with:
Blind bores without relief access — impeller hubs and pump sleeves frequently have closed-end geometry where a relief groove or cross-hole would compromise the part. Broaching requires that relief. NMT’s keyseat miller doesn’t.
Stepped and threaded bores — pump sleeve bores often have internal features — threads, shoulders, reduced-diameter sections — that prevent a standard broach from passing through. A custom keyseat miller can be designed around the specific bore geometry.
Thin walls — impellers and wear rings often have thin hub walls where adding a relief hole would reduce wall thickness below design minimums. No modification to the part is required with NMT tooling.
Non-standard bore sizes — pump manufacturers work across a wide range of bore diameters and keyway sizes, including metric. Off-the-shelf broaches don’t always exist for non-standard dimensions, and custom broaches are expensive and slow to procure. NMT manufactures to your exact dimensions in 2–3 weeks.
Bronze, stainless, and specialty alloys — pump wetted components are frequently made from bronze, 316 stainless, duplex stainless, Hastelloy, and other corrosion-resistant alloys. NMT keyseat millers are designed for the specific material in your application.
Capabilities for Pump Manufacturing Applications
All tooling is custom-manufactured to your application:
- Bore diameters: Under ½” to over 6″ (imperial and metric)
- Keyslot widths: 1/16″ to 2½”
- Keyslot length: Up to 12″ in most materials
- Tolerances: Within ±0.0002″ on width
- Keyway types: Full depth, two-step, parallel/opposite, radius arc, straight splines
- Blind bores: Full-depth keyway milling with no relief hole required
- Special geometries: Stepped bores, threaded bores, bores with internal shoulders — contact us to discuss your specific geometry
- Materials: Bronze, 316 stainless, duplex stainless, carbon steel, aluminum, and most pump assembly alloys

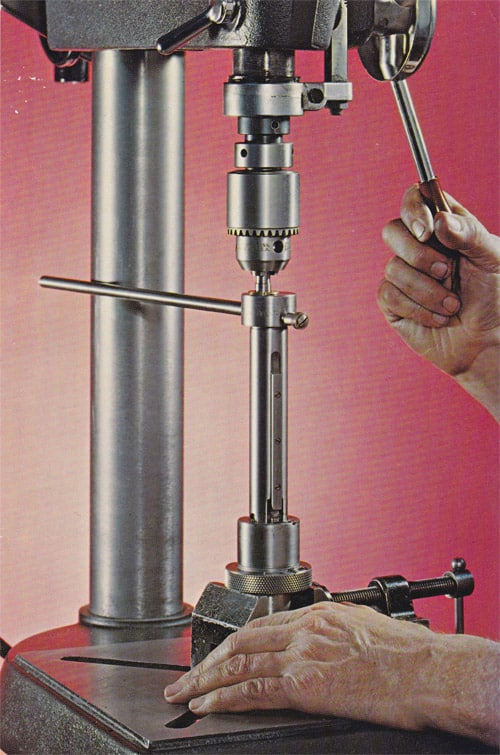

- Machine compatibility: Manual drill press, manual mill, horizontal CNC, vertical CNC machining center
- Delivery: Stock tooling ships in 2–3 days; custom tooling in 2–3 weeks
For Pump OEMs, Repair Shops, and Job Shops
Pump OEMs use NMT keyseat millers as a standard production tool — particularly for impeller hub and sleeve keyway operations that are too geometrically complex for the broaching setup they use on simpler parts.
Pump repair and rebuild shops use them to restore keyways in worn or damaged pump sleeves, cut replacement keyways in custom-made sleeves, and handle non-standard bore sizes that don’t match available broach inventory.
Job shops with pump manufacturing customers bring NMT tooling in-house to handle the difficult keyway work that keeps getting outsourced — blind bore impeller hubs, bronze sleeve applications, stepped bore geometries — without investing in EDM or dedicated broaching equipment.
Request a Quote for Your Pump Application
Have a pump sleeve, impeller hub, or shaft coupling keyway application? Start with a print or sketch. Describe your bore diameter, keyway dimensions, material, and any geometric constraints — we’ll quote custom tooling and confirm feasibility from there.
Call us: 513-541-6682 Email: nationalmachinetoolco@gmail.com
National Machine Tool Co. — Cincinnati, OH — Over 100 years manufacturing precision keyseat millers for the pump industry and beyond.
